Multivariable regression examples

require(datasets); data(swiss); ?swiss

Standardized fertility measure and socio-economic indicators for each of 47 French-speaking provinces of Switzerland at about 1888.

A data frame with 47 observations on 6 variables, each of which is in percent, i.e., in [0, 100].

• [,1] Fertility a common standardized fertility measure
• [,2] Agriculture % of males involved in agriculture as occupation
• [,3] Examination % draftees receiving highest mark on army examination
• [,4] Education % education beyond primary school for draftees
• [,5] Catholic % catholic (as opposed to protestant)
• [,6] Infant.Mortality live births who live less than 1 year

All variables but Fertility give proportions of the population.

summary(lm(Fertility ~ . , data = swiss))

                 Estimate Std. Error t value  Pr(>|t|)
(Intercept)       66.9152   10.70604   6.250 1.906e-07
Agriculture       -0.1721    0.07030  -2.448 1.873e-02
Examination       -0.2580    0.25388  -1.016 3.155e-01
Education         -0.8709    0.18303  -4.758 2.431e-05
Catholic           0.1041    0.03526   2.953 5.190e-03
Infant.Mortality   1.0770    0.38172   2.822 7.336e-03

• Agriculture is expressed in percentages (0 - 100)
• Estimate is -0.1721.
• Our models estimates an expected 0.17 decrease in standardized fertility for every 1% increase in percentage of males involved in agriculture in holding the remaining variables constant.
• The t-test for \(H_0: \beta_{Agri} = 0\) versus \(H_a: \beta_{Agri} \neq 0\) is significant.
• Interestingly, the unadjusted estimate is

summary(lm(Fertility ~ Agriculture, data = swiss))$coefficients

            Estimate Std. Error t value  Pr(>|t|)
(Intercept)  60.3044    4.25126  14.185 3.216e-18
Agriculture   0.1942    0.07671   2.532 1.492e-02

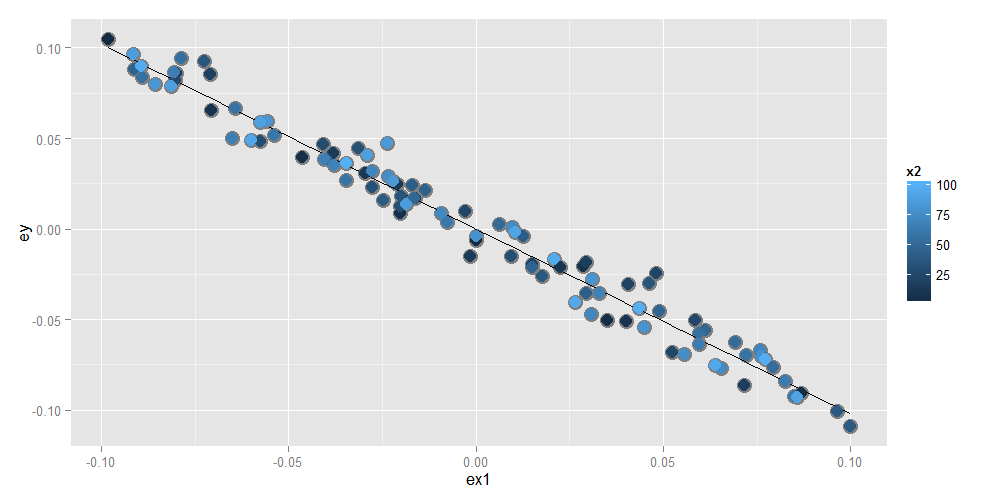

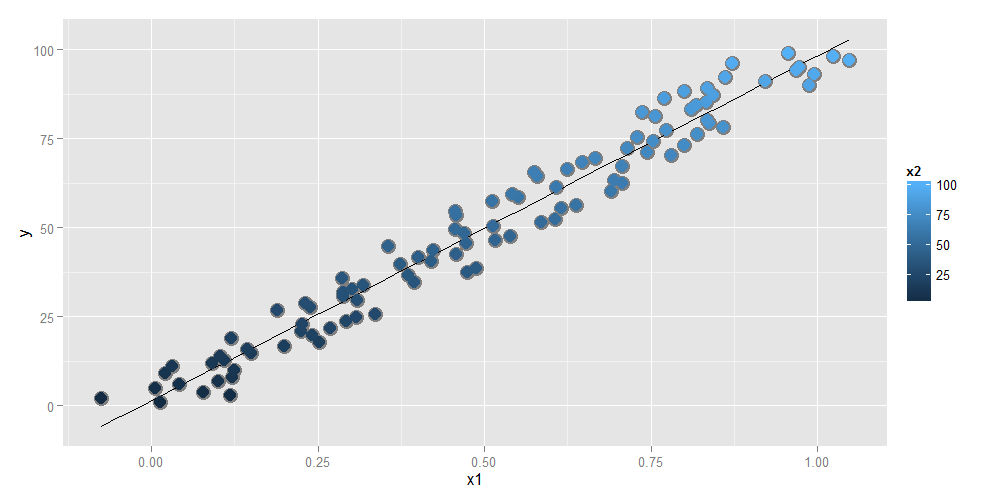

How can adjustment reverse the sign of an effect? Let's try a simulation.

n <- 100; x2 <- 1 : n; x1 <- .01 * x2 + runif(n, -.1, .1); y = -x1 + x2 + rnorm(n, sd = .01)
summary(lm(y ~ x1))$coef

            Estimate Std. Error t value  Pr(>|t|)
(Intercept)    1.454      1.079   1.348 1.807e-01
x1            96.793      1.862  51.985 3.707e-73

summary(lm(y ~ x1 + x2))$coef

             Estimate Std. Error  t value   Pr(>|t|)
(Intercept)  0.001933  0.0017709    1.092  2.777e-01
x1          -1.020506  0.0163560  -62.393  4.211e-80
x2           1.000133  0.0001643 6085.554 1.544e-272

• The sign reverses itself with the inclusion of Examination and Education.
• The percent of males in the province working in agriculture is negatively related to educational attainment (correlation of -0.6395) and Education and Examination (correlation of 0.6984) are obviously measuring similar things.
  • Is the positive marginal an artifact for not having accounted for, say, Education level? (Education does have a stronger effect, by the way.)
• At the minimum, anyone claiming that provinces that are more agricultural have higher fertility rates would immediately be open to criticism.

z adds no new linear information, since it's a linear combination of variables already included. R just drops terms that are linear combinations of other terms.

z <- swiss$Agriculture + swiss$Education
lm(Fertility ~ . + z, data = swiss)

Call:
lm(formula = Fertility ~ . + z, data = swiss)

Coefficients:
     (Intercept)       Agriculture       Examination         Education          Catholic
          66.915            -0.172            -0.258            -0.871             0.104
Infant.Mortality                 z
           1.077                NA

• Consider the linear model \[ Y_i = \beta_0 + X_{i1} \beta_1 + \epsilon_{i} \] where each \(X_{i1}\) is binary so that it is a 1 if measurement \(i\) is in a group and 0 otherwise. (Treated versus not in a clinical trial, for example.)
• Then for people in the group \(E[Y_i] = \beta_0 + \beta_1\)
• And for people not in the group \(E[Y_i] = \beta_0\)
• The LS fits work out to be \(\hat \beta_0 + \hat \beta_1\) is the mean for those in the group and \(\hat \beta_0\) is the mean for those not in the group.
• \(\beta_1\) is interpretted as the increase or decrease in the mean comparing those in the group to those not.
• Note including a binary variable that is 1 for those not in the group would be redundant. It would create three parameters to describe two means.

• Consider a multilevel factor level. For didactic reasons, let's say a three level factor (example, US political party affiliation: Republican, Democrat, Independent)
• \(Y_i = \beta_0 + X_{i1} \beta_1 + X_{i2} \beta_2 + \epsilon_i\).
• \(X_{i1}\) is 1 for Republicans and 0 otherwise.
• \(X_{i2}\) is 1 for Democrats and 0 otherwise.
• If \(i\) is Republican \(E[Y_i] = \beta_0 +\beta_1\)
• If \(i\) is Democrat \(E[Y_i] = \beta_0 + \beta_2\).
• If \(i\) is Independent \(E[Y_i] = \beta_0\).
• \(\beta_1\) compares Republicans to Independents.
• \(\beta_2\) compares Democrats to Independents.
• \(\beta_1 - \beta_2\) compares Republicans to Democrats.
• (Choice of reference category changes the interpretation.)

summary(lm(count ~ spray, data = InsectSprays))$coef

            Estimate Std. Error t value  Pr(>|t|)
(Intercept)  14.5000      1.132 12.8074 1.471e-19
sprayB        0.8333      1.601  0.5205 6.045e-01
sprayC      -12.4167      1.601 -7.7550 7.267e-11
sprayD       -9.5833      1.601 -5.9854 9.817e-08
sprayE      -11.0000      1.601 -6.8702 2.754e-09
sprayF        2.1667      1.601  1.3532 1.806e-01

summary(lm(count ~
             I(1 * (spray == 'B')) + I(1 * (spray == 'C')) +
             I(1 * (spray == 'D')) + I(1 * (spray == 'E')) +
             I(1 * (spray == 'F'))
           , data = InsectSprays))$coef

                      Estimate Std. Error t value  Pr(>|t|)
(Intercept)            14.5000      1.132 12.8074 1.471e-19
I(1 * (spray == "B"))   0.8333      1.601  0.5205 6.045e-01
I(1 * (spray == "C")) -12.4167      1.601 -7.7550 7.267e-11
I(1 * (spray == "D"))  -9.5833      1.601 -5.9854 9.817e-08
I(1 * (spray == "E")) -11.0000      1.601 -6.8702 2.754e-09
I(1 * (spray == "F"))   2.1667      1.601  1.3532 1.806e-01

summary(lm(count ~
   I(1 * (spray == 'B')) + I(1 * (spray == 'C')) +
   I(1 * (spray == 'D')) + I(1 * (spray == 'E')) +
   I(1 * (spray == 'F')) + I(1 * (spray == 'A')), data = InsectSprays))$coef

                      Estimate Std. Error t value  Pr(>|t|)
(Intercept)            14.5000      1.132 12.8074 1.471e-19
I(1 * (spray == "B"))   0.8333      1.601  0.5205 6.045e-01
I(1 * (spray == "C")) -12.4167      1.601 -7.7550 7.267e-11
I(1 * (spray == "D"))  -9.5833      1.601 -5.9854 9.817e-08
I(1 * (spray == "E")) -11.0000      1.601 -6.8702 2.754e-09
I(1 * (spray == "F"))   2.1667      1.601  1.3532 1.806e-01

summary(lm(count ~ spray - 1, data = InsectSprays))$coef

       Estimate Std. Error t value  Pr(>|t|)
sprayA   14.500      1.132  12.807 1.471e-19
sprayB   15.333      1.132  13.543 1.002e-20
sprayC    2.083      1.132   1.840 7.024e-02
sprayD    4.917      1.132   4.343 4.953e-05
sprayE    3.500      1.132   3.091 2.917e-03
sprayF   16.667      1.132  14.721 1.573e-22

library(dplyr)
summarise(group_by(InsectSprays, spray), mn = mean(count))

Source: local data frame [6 x 2]

  spray     mn
1     A 14.500
2     B 15.333
3     C  2.083
4     D  4.917
5     E  3.500
6     F 16.667

spray2 <- relevel(InsectSprays$spray, "C")
summary(lm(count ~ spray2, data = InsectSprays))$coef

            Estimate Std. Error t value  Pr(>|t|)
(Intercept)    2.083      1.132  1.8401 7.024e-02
spray2A       12.417      1.601  7.7550 7.267e-11
spray2B       13.250      1.601  8.2755 8.510e-12
spray2D        2.833      1.601  1.7696 8.141e-02
spray2E        1.417      1.601  0.8848 3.795e-01
spray2F       14.583      1.601  9.1083 2.794e-13

• If we treat Spray as a factor, R includes an intercept and omits the alphabetically first level of the factor.
  • All t-tests are for comparisons of Sprays versus Spray A.
  • Emprirical mean for A is the intercept.
  • Other group means are the itc plus their coefficient.
• If we omit an intercept, then it includes terms for all levels of the factor.
  • Group means are the coefficients.
  • Tests are tests of whether the groups are different than zero. (Are the expected counts zero for that spray.)
• If we want comparisons between, Spray B and C, say we could refit the model with C (or B) as the reference level.

• Counts are bounded from below by 0, violates the assumption of normality of the errors.
  • Also there are counts near zero, so both the actual assumption and the intent of the assumption are violated.
• Variance does not appear to be constant.
• Perhaps taking logs of the counts would help.
  • There are 0 counts, so maybe log(Count + 1)
• Also, we'll cover Poisson GLMs for fitting count data.

library(datasets); data(swiss)
head(swiss)

             Fertility Agriculture Examination Education Catholic Infant.Mortality
Courtelary        80.2        17.0          15        12     9.96             22.2
Delemont          83.1        45.1           6         9    84.84             22.2
Franches-Mnt      92.5        39.7           5         5    93.40             20.2
Moutier           85.8        36.5          12         7    33.77             20.3
Neuveville        76.9        43.5          17        15     5.16             20.6
Porrentruy        76.1        35.3           9         7    90.57             26.6

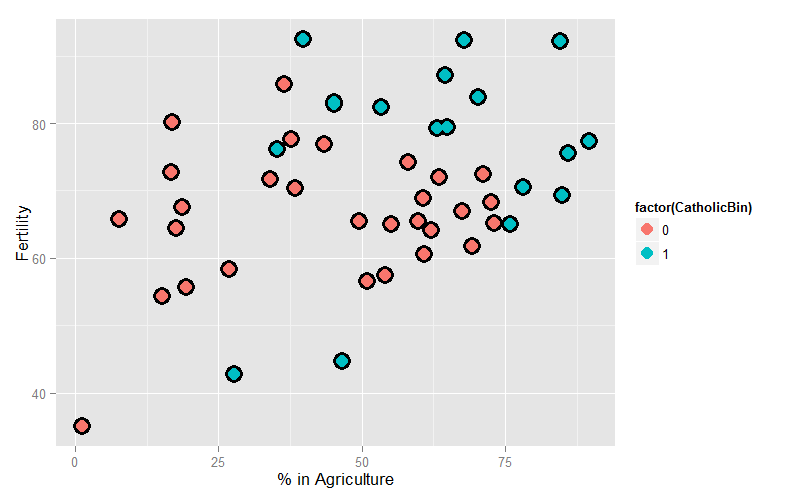

library(dplyr);
swiss = mutate(swiss, CatholicBin = 1 * (Catholic > 50))

summary(lm(Fertility ~ Agriculture, data = swiss))$coef

            Estimate Std. Error t value  Pr(>|t|)
(Intercept)  60.3044    4.25126  14.185 3.216e-18
Agriculture   0.1942    0.07671   2.532 1.492e-02

summary(lm(Fertility ~ Agriculture + factor(CatholicBin), data = swiss))$coef

                     Estimate Std. Error t value  Pr(>|t|)
(Intercept)           60.8322     4.1059  14.816 1.032e-18
Agriculture            0.1242     0.0811   1.531 1.329e-01
factor(CatholicBin)1   7.8843     3.7484   2.103 4.118e-02

summary(lm(Fertility ~ Agriculture * factor(CatholicBin), data = swiss))$coef

                                 Estimate Std. Error t value  Pr(>|t|)
(Intercept)                      62.04993    4.78916 12.9563 1.919e-16
Agriculture                       0.09612    0.09881  0.9727 3.361e-01
factor(CatholicBin)1              2.85770   10.62644  0.2689 7.893e-01
Agriculture:factor(CatholicBin)1  0.08914    0.17611  0.5061 6.153e-01

summary(lm(Fertility ~ Agriculture + Agriculture : factor(CatholicBin), data = swiss))$coef

                                 Estimate Std. Error t value  Pr(>|t|)
(Intercept)                      62.63037    4.22989 14.8066 1.057e-18
Agriculture                       0.08539    0.08945  0.9546 3.450e-01
Agriculture:factor(CatholicBin)1  0.13340    0.06199  2.1520 3.693e-02
